Curedent Custom Tray: Engineered Uniform Relief for High-Precision Master Cast Transfer

Table of Contents

Section 1: Product Introduction & Clinical Purpose

The Curedent Custom Tray is a patient-specific, precision 3D-printed impression tray engineered to deliver uniform elastomeric thickness, stable tissue stops, and reliable master cast transfer for demanding prosthodontic and implant restorative workflows. Developed for general dentists, prosthodontists, laboratory managers, and dental technicians, this appliance replaces stock impression trays with a digitally designed, anatomically adapted carrier that controls impression material distribution and eliminates the distortion risks associated with conventional tray systems.

Impression accuracy is the foundation of every successful indirect restoration. A veneer, crown, bridge, or implant-supported prosthesis can only be as precise as the impression from which it is fabricated—and the impression can only be as precise as the tray that carries the impression material. Stock trays, by design, cannot adapt to individual arch anatomy. They produce uneven elastomer thickness, unstable seating, and unpredictable polymerization shrinkage patterns that compromise master cast accuracy. Performing custom impression tray fabrication through a digital workflow solves these problems directly. By designing the tray from the patient’s own intraoral scan, the clinician obtains a carrier that is anatomically adapted, mechanically stable, and engineered to produce uniform material thickness across the entire preparation field.

Key Clinical Advantages

Uniform Elastomeric Thickness: Engineered relief space delivers consistent 2–3 mm material thickness across the entire preparation field.
Stable Tissue Stops: Precision-printed stops ensure positive, repeatable seating on the dental arch without rocking or drift.
Controlled Polymerization Shrinkage: Uniform material distribution minimizes shrinkage vectors that distort the master cast.
Reproducible Master Cast Transfer: Digital design and rigid tray body deliver predictable impression accuracy across every case.
Autoclavable Construction: Class IIa biocompatible printable resin supports standard clinical sterilization workflows.

Section 2: Product Anatomy & Physical Construction

Class IIa Biocompatible Printable Resin

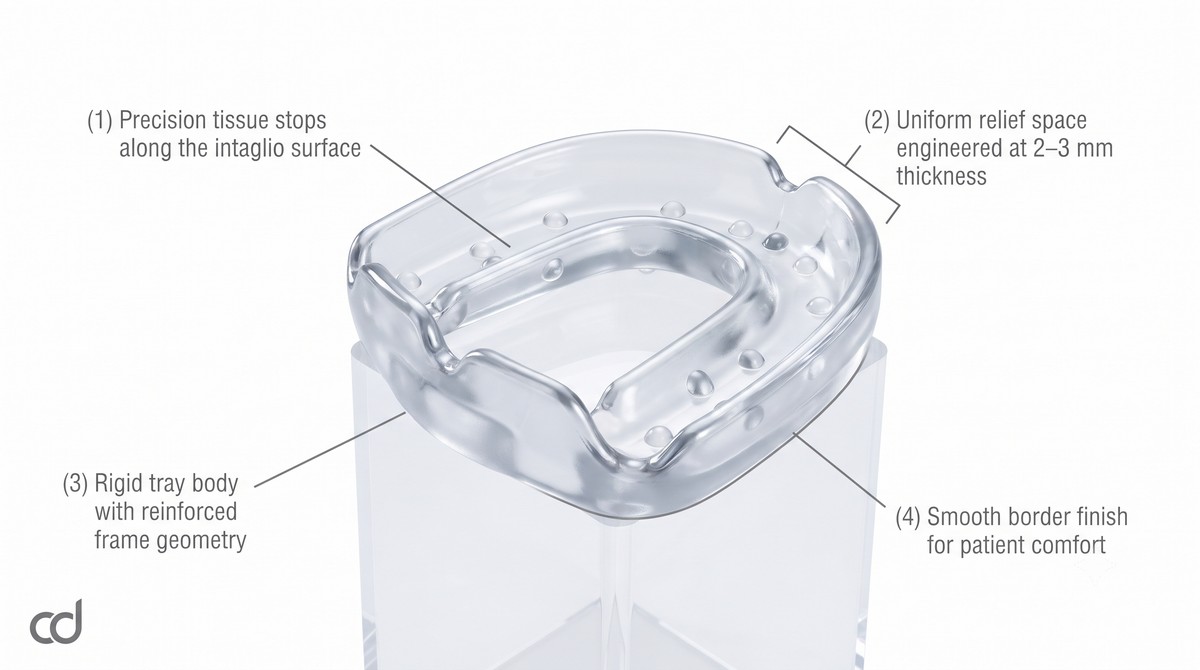

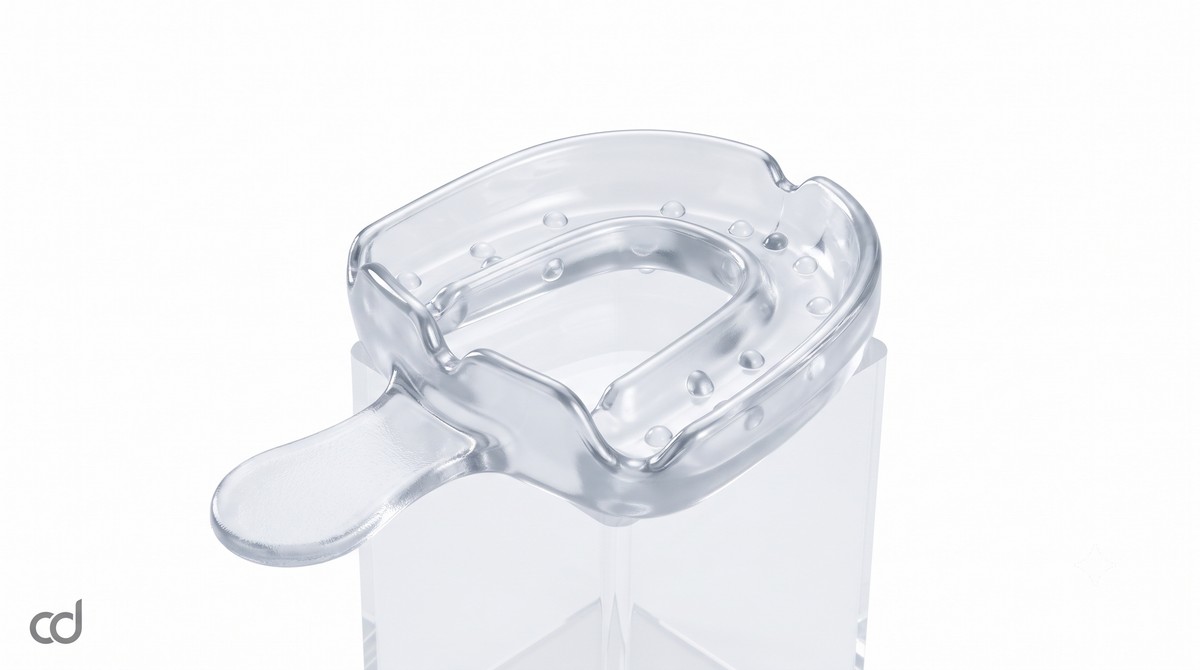

Every Curedent Custom Tray is 3D-printed from a certified Class IIa biocompatible printable resin formulated for dental impression applications. The material delivers high flexural rigidity, low water sorption, and dimensional stability under impression loading. Unlike hand-fabricated shellac or light-cured resin trays that exhibit variable thickness and irregular geometry, printed resin construction ensures uniform density and precise geometric execution across the entire tray body.

Rigid Tray Body and Frame Geometry

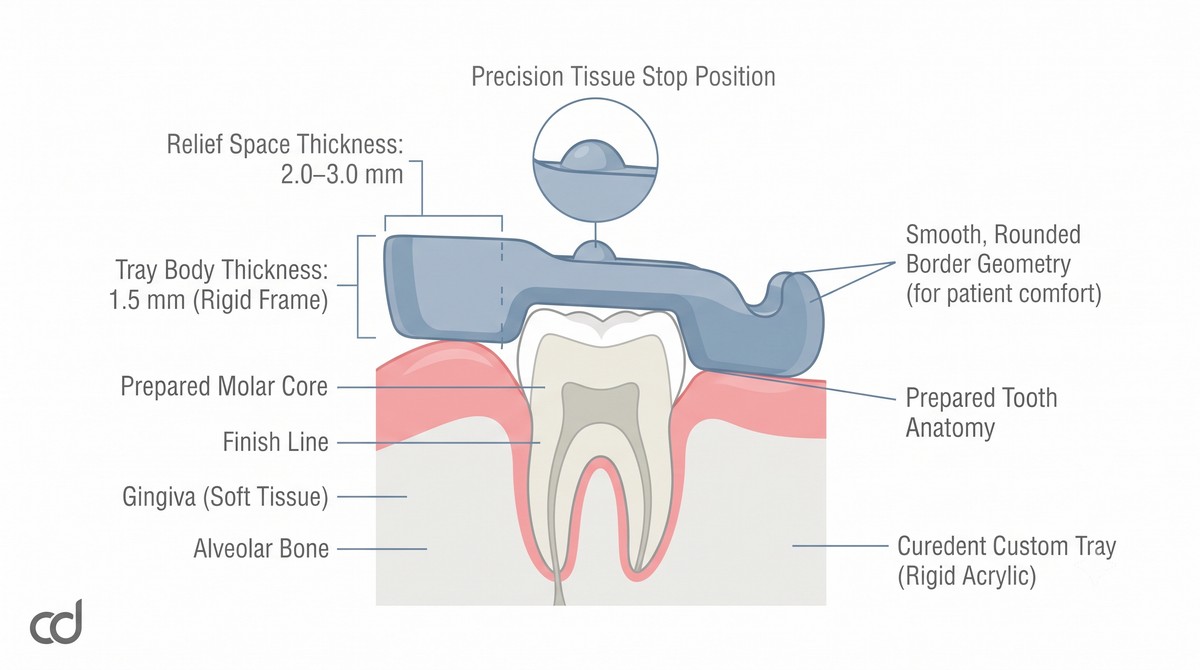

The tray body is printed as a rigid, monolithic frame with a thickness calibrated to resist flexural deformation under impression loading. Unlike flexible stock trays that can distort under the weight of heavy-body impression material, the Curedent tray maintains its shape throughout the impression set. The frame geometry is anatomically adapted to the patient’s arch form, ensuring that the tray seats passively without interference from undercuts, frenal attachments, or soft-tissue contours.

Uniform Elastomeric Thickness (2-3mm) Relief Space

The defining feature of the Curedent Custom Tray is its engineered uniform elastomeric thickness (2-3mm) relief space. The intaglio surface of the tray is offset from the dental arch by a precisely controlled 2–3 mm gap, ensuring that the impression material flows uniformly across the entire preparation field. This uniform thickness is critical for two reasons:

Polymerization Shrinkage Control: Impression materials shrink as they polymerize, and the direction and magnitude of shrinkage depend on the material thickness. Uniform thickness produces predictable, uniform shrinkage vectors that can be compensated for during master cast fabrication.
Accurate Detail Reproduction: Uniform material thickness ensures that impression material reaches every preparation margin, sulcus depth, and surface detail with the same contact pressure, producing a more accurate master cast.

Precision Tissue Stops and Seating Stability

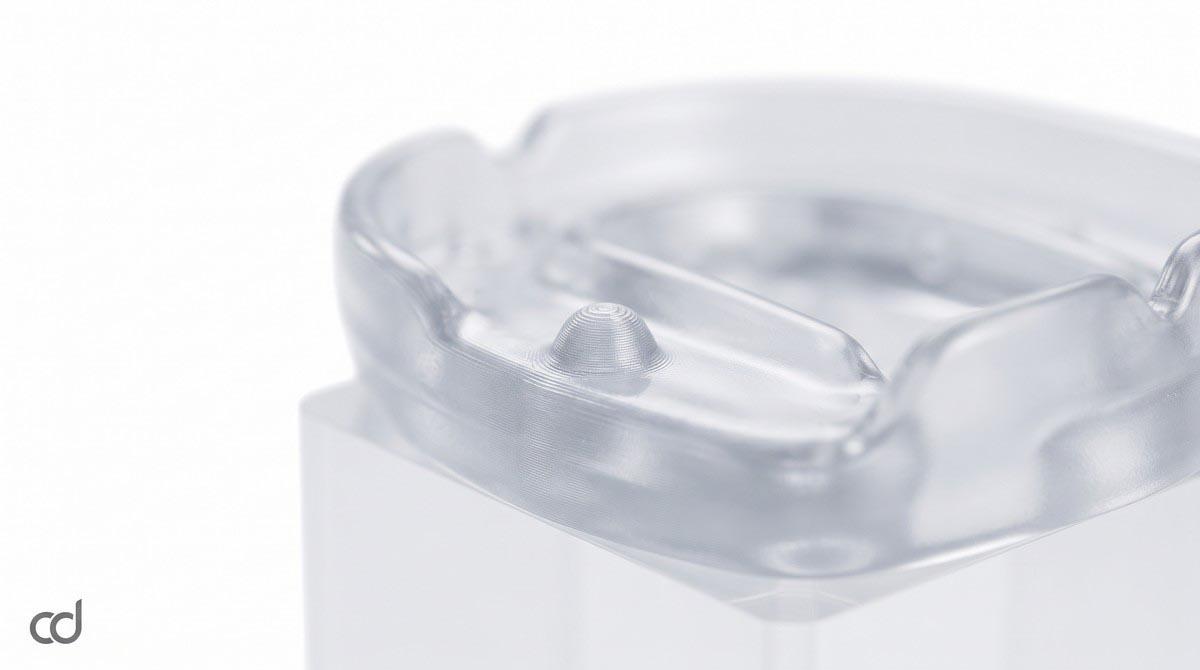

Tissue stops stability is engineered into the tray design through precision-printed contact points that seat directly on stable oral tissues—typically the palatal or lingual surfaces, the incisal edges, or the occlusal surfaces of unprepared posterior teeth. These stops establish a definitive vertical position for the tray, preventing it from drifting or seating too deeply during impression taking. Because the stops are printed with the same precision as the tray body itself, the seating position is reproducible across multiple attempts, ensuring consistent impression results.

Border Geometry and Tray Rigidity Features

The tray borders are designed to extend slightly beyond the preparation field, providing adequate material containment without impinging on soft tissue. The borders are smoothly finished to prevent patient discomfort during seating and removal. Rigidity features—including reinforced rims and internal ribbing where indicated—prevent the tray from flexing under impression loading, maintaining uniform material thickness throughout the set.

Digital Workflow and Milling Precision

[Intraoral Optical Scan (STL/PLY)] ──┐
├─► [Digital CAD Design] ──► [3D Printed Custom Tray]
[Diagnostic Cast Scan (If Available)]┘

The tray is designed entirely in CAD from the patient’s optical intraoral scan or a diagnostic cast scan. The digital design defines the relief space thickness, tissue stop positions, border geometry, and frame rigidity. The design is executed through high-resolution 3D printing, producing a monolithic tray with uniform density and precise geometric execution.

Why Uniform Elastomer Thickness Matters

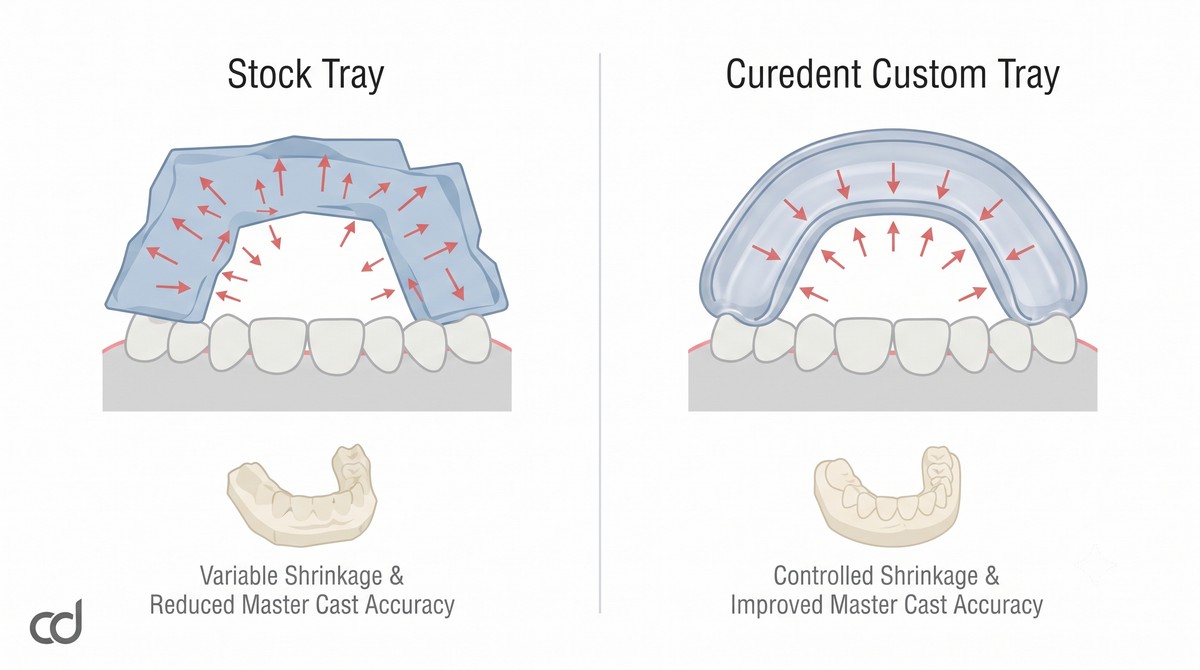

Impression materials are not dimensionally stable during polymerization. As the material sets, it shrinks by a small but clinically significant percentage, and the shrinkage vectors depend heavily on the thickness of the material layer. Stock trays produce variable thickness—thick in some areas, thin in others—and the resulting shrinkage vectors are unpredictable. The master cast that results from such an impression may be slightly distorted in ways that are difficult to detect but that can compromise the fit of the final restoration.

The Curedent Custom Tray solves this problem by controlling the material thickness at every point in the impression field. The uniform 2–3 mm relief space ensures that shrinkage vectors are predictable and uniform, allowing the technician to compensate accurately during master cast fabrication. The result is a more accurate master cast, a better-fitting restoration, and fewer clinical adjustments.

Section 3: Indications & Clinical Applications

Primary Clinical Indications

The Curedent Custom Tray is indicated across a broad range of precision impression applications:

Precise Impression for Fixed Prosthodontics: Single crowns, multi-unit bridges, inlays, onlays, and veneers requiring accurate margin reproduction.
Implant Prosthetics: Cases requiring impression accuracy for implant-supported crowns, bridges, and frameworks.
Complex Crown and Bridge Cases: Multi-unit restorations, full-arch reconstructions, and cases with subgingival margins or deep preparations.
Cases Requiring Accurate Master Cast Transfer: Any clinical scenario where the master cast accuracy is critical for restoration fit and long-term success.

Custom Tray Feasibility Checklist:
[✓] Diagnostic data available (intraoral scan or diagnostic cast)
[✓] Planned restoration type identified
[✓] Impression material selected (VPS, polyether, or hybrid)
[✓] Tray design matched to preparation geometry
[✗] Inadequate diagnostic data for tray design (Contraindicated)

Case Selection Criteria

Adequate Diagnostic Data: Accurate tray design requires a high-resolution intraoral scan or diagnostic cast scan. Incomplete or low-resolution scans will compromise tray adaptation and tissue stop placement.
Planned Restoration Type: The tray design must match the planned restoration type. Single crowns require different tray geometry than full-arch impressions, and implant cases require specific coping clearance.
Impression Material Selection: The relief space is calibrated to the selected impression material. VPS materials typically require 2 mm thickness, while polyethers may require slightly different relief depending on flow characteristics.

Why Stock Trays Can Distort Impressions

Stock impression trays are mass-produced in a limited range of sizes and shapes. They cannot adapt to individual arch anatomy, which means the impression material thickness varies unpredictably across the impression field. Thin areas are prone to tearing and distortion; thick areas produce larger, irregular shrinkage vectors. When the material sets, the uneven shrinkage distorts the master cast in ways that can cause:

Restoration fit discrepancies: Crowns and bridges fabricated from distorted casts require extensive chairside adjustment or remaking.
Margin misfit: Inaccurate margin reproduction leads to open margins, cement washout, and secondary caries.
Occlusal errors: Distorted casts can produce occlusal discrepancies that require extensive chairside equilibration.

Polymerization Shrinkage Distortion Prevention

Polymerization shrinkage distortion prevention is the core clinical value of the Curedent Custom Tray. By controlling the impression material thickness at every point in the impression field, the tray eliminates the variable shrinkage vectors that distort stock tray impressions. The uniform 2–3 mm relief space ensures that the material shrinks uniformly, producing a master cast that faithfully reproduces the patient’s dental anatomy.

Typical Clinical Scenarios

Single-Unit Crown and Onlay Impressions: Cases requiring precise margin reproduction and stable tissue management around the preparation.
Multi-Unit Bridge Impressions: Cases involving multiple abutment teeth where accurate relationship transfer is critical for framework fit.
Implant-Supported Restoration Impressions: Cases requiring precise transfer of implant position, angulation, and soft-tissue contours.
Full-Arch Reconstruction Impressions: Cases requiring comprehensive arch impressions with stable tissue stops and uniform material distribution.

Section 4: Clinical Workflow & Impression Protocol

Step 1: Data Acquisition

Acquire a high-resolution optical intraoral scan of the patient’s dental arch, capturing the full preparation field, gingival margins, and adjacent teeth. Alternatively, submit a diagnostic cast scan if an intraoral scan is not available. Ensure that the scan captures adequate detail for accurate tray design and tissue stop placement.

Step 2: Digital CAD Design

Curedent digital engineers design the tray within a CAD environment. The relief space is established at a uniform 2–3 mm across the entire preparation field. Tissue stops are positioned at stable anatomical landmarks—palatal or lingual surfaces, incisal edges, or occlusal surfaces of unprepared teeth—to establish a definitive seating position. The clinician reviews and approves the virtual design before printing.

Step 3: High-Resolution 3D Printing

The approved design is 3D-printed at high resolution using Class IIa biocompatible printable resin. The printing process produces a monolithic tray with uniform density and precise geometric execution. The tray is post-processed, cleaned, and inspected for surface quality before dispatch.

Step 4: Delivery Verification

Upon receiving the tray, inspect it on the master model: confirm that the relief space matches the specified thickness, verify that tissue stops engage stable anatomical landmarks, check that the tray borders are smooth and continuous, and ensure that the tray body is rigid without flexural deformation.

Step 5: Adhesive Application and Impression Material Loading

Apply tray adhesive to the intaglio surface of the tray according to the manufacturer’s instructions. Allow the adhesive to dry completely before loading.
Load the tray with the selected impression material, distributing it evenly across the tray surface.
Ensure that the material is loaded with sufficient volume to fill the relief space uniformly without air entrapment.

Step 6: Seating and Stabilization During Impression Set

Seat the tray on the patient’s arch using gentle, even pressure.
Verify that the tissue stops engage their intended anatomical landmarks, establishing a definitive vertical seating position.
Maintain stable seating pressure throughout the impression set, ensuring that the tray does not drift or rock during material polymerization.
Monitor the material set according to the manufacturer’s recommended working and setting times.

Step 7: Removal and Master Cast Transfer Verification

After the impression material has fully set, remove the tray with a firm, even pull along the path of insertion. Inspect the impression for:

Complete margin reproduction: Every preparation margin should be clearly and accurately reproduced.
Uniform material thickness: The impression should show consistent material thickness across the entire field.
Absence of voids or tears: The impression should be free of voids, tears, or distortion.
Accurate detail reproduction: Surface detail, including sulcus depth and gingival contour, should be faithfully reproduced.

Pour the master cast using standard dental laboratory protocols, and verify that the cast accurately reproduces the patient’s dental anatomy. The master cast transfer precision achieved with the Curedent Custom Tray provides a reliable foundation for accurate restoration fabrication.

Tray Seating Stability and Material Handling Safety

Stable tray seating is essential for accurate impression results. Before loading the tray with impression material, perform a dry trial seating to verify that the tissue stops engage properly and that the tray seats without rocking or drift. If the tray does not seat passively, inspect the tissue stops and borders for interference and adjust as needed. During impression taking, maintain stable, even seating pressure to prevent tray movement during material polymerization. Handle impression materials according to the manufacturer’s instructions, including recommended working times, setting times, and mixing protocols.

Section 5: Technical Specifications & Manufacturing Standards

Certified Technical Specifications

The Curedent Custom Tray is manufactured to strict biomedical and dimensional tolerances to ensure reliable impression accuracy and predictable master cast transfer.

Parameter	Specification	Clinical Relevance
Material	Class IIa biocompatible printable resin	High rigidity, dimensional stability, non-toxic
Fabrication method	Precision 3D printing	Monolithic construction, uniform density
Relief space thickness	Uniform elastomeric thickness (2–3 mm)	Controls material shrinkage and detail reproduction
Tissue stops	Precision printed, stable seating contact points	Definitive vertical seating without drift
Tray body rigidity	Engineered to prevent flex during impression set	Maintains uniform material thickness
Border finish	Smooth, non-irritating	Patient comfort and controlled material containment
Fit tolerance	Engineered for stable seating on natural dentition	Passive seating without rocking
Impression compatibility	Compatible with standard elastomeric impression materials	Supports VPS, polyether, and hybrid materials
Sterilization	Autoclavable / delivered ready for clinical use	Complies with standard clinical workflows
Purpose	High-precision master cast transfer	Accurate indirect restoration fabrication

3D Printed Precision Tray Accuracy Standards

The impression accuracy of the Curedent Custom Tray depends on precise printing tolerances:

Relief Space Tolerance: The uniform relief space is maintained within ± 0.10 mm across the entire tray surface, ensuring consistent material thickness and predictable shrinkage vectors.
Tissue Stop Tolerance: Tissue stops are printed to a tolerance of ± 0.05 mm, ensuring precise, repeatable seating on stable anatomical landmarks.
Tray Body Rigidity: The tray body is engineered to resist flexural deformation under impression loading, maintaining uniform material thickness throughout the impression set.

Why 3D Printed Precision Trays Outperform Analog Fabrication

Analog custom tray fabrication—using shellac, light-cured resin, or vacuum-formed materials—produces trays with variable thickness, irregular geometry, and unpredictable seating stability. The 3D printed precision tray eliminates these variables through digital design and high-resolution printing. The result is a tray that is:

Anatomically adapted: Designed from the patient’s own intraoral scan for precise fit.
Dimensionally consistent: Printed with uniform density and precise geometric execution.
Reproducible: The same digital design can be reprinted if a replacement tray is needed.
Rigid: Engineered to resist flexural deformation under impression loading.

Section 6: Clinical Benefits & Practice Impact

Patient-Level Clinical Benefits

Accurate Restoration Fit: Uniform elastomer thickness and stable tissue stops produce a more accurate master cast, resulting in restorations that fit precisely with minimal chairside adjustment.
Fewer Impression Retakes: The controlled material distribution and stable seating significantly reduce the incidence of impression voids, tears, and distortion that require retaking the impression.
Reduced Discomfort: The anatomically adapted tray seats comfortably and the smooth border finish minimizes patient discomfort during impression taking.
Reliable Long-Term Restorations: Accurate master cast transfer supports the fabrication of restorations with well-adapted margins and predictable long-term success.

Practice-Level Operational Advantages

Routine Adoption of Custom Tray Workflow: Integrating the Curedent Custom Tray into the impression workflow standardizes impression accuracy and reduces the variability associated with stock trays.
Reduced Chairside Time: Accurate impressions mean fewer retakes, fewer remake appointments, and less time spent on chairside adjustment of restorations.
Predictable Laboratory Outcomes: Laboratory technicians receive impressions with uniform material thickness and accurate detail reproduction, enabling predictable master cast fabrication.
Standardization Across Impression Cases: A structured custom tray protocol allows clinical teams to manage impression cases with consistent, repeatable workflows.

Custom Trays as the Modern Standard for High-Precision Impressions

Stock impression trays remain the default in many practices for reasons of convenience and cost, but they cannot deliver the impression accuracy that modern restorative and implant dentistry demands. Analog custom tray fabrication improves accuracy but introduces variability through hand-fabrication steps. The Curedent Custom Tray combines the accuracy of custom fabrication with the reproducibility of digital design and 3D printing. By using a Curedent Custom Tray for precision impression cases, clinicians can achieve the master cast accuracy that accurate restorations demand.

Integrating the Custom Tray with Other Curedent Appliances

For implant cases requiring open-tray impression techniques, the Curedent Implant Impression Tray provides windowed access for guide pin management and coping engagement. For restorative cases requiring occlusal analysis, the Curedent Occlusal Splint supports diagnostic occlusal verification. For prosthodontic cases requiring protection after restoration, Curedent Night Guards provide bruxism protection.

Section 7: Ordering, FAQ & Call to Action

Simple Three-Step Ordering Workflow

Ordering the Curedent Custom Tray through the doctor portal is designed to be efficient:

[Step 1: Upload Scan Data] ──► [Step 2: Review Digital Design] ──► [Step 3: Receive Tray]
Intraoral STL/PLY CAD Approval via Portal Printed & Ready to Use

Upload Case Records: Access the Curedent portal and upload the patient’s optical intraoral scan (STL or PLY format) or diagnostic cast scan. Note the planned restoration type and impression material selection.
Review Digital Design: Curedent engineers design the tray with uniform 2–3 mm relief space, precision tissue stops, and rigid tray body geometry. Review and approve the design via the interactive web viewer.
Receive and Deliver: Curedent prints the tray at high resolution using Class IIa biocompatible resin, inspects the relief space and tissue stops, packages the tray in protective clinical casing, and dispatches it directly to your practice.

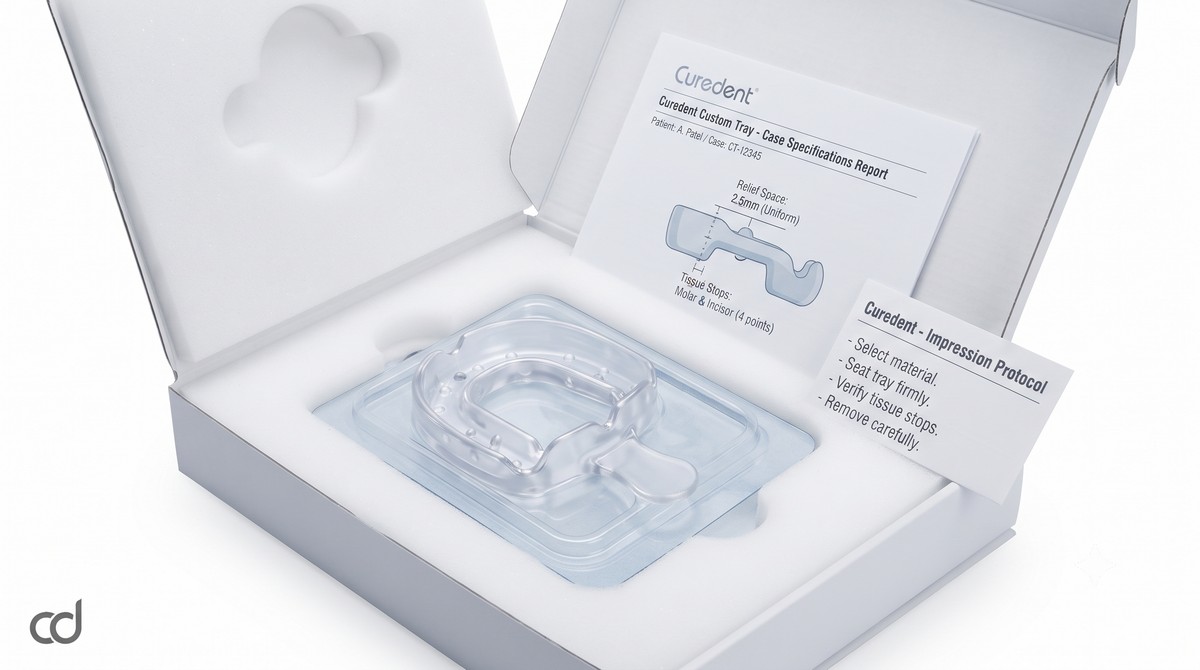

Standard Shipment Package Contents:

Frequently Asked Questions

Can I use my own impression material with the Curedent Custom Tray?

Yes. The Curedent Custom Tray is compatible with standard elastomeric impression materials, including vinyl polysiloxane (VPS), polyether, and hybrid materials. The relief space is calibrated to 2–3 mm, which is appropriate for most standard impression materials. If you use a specialized material with different flow or shrinkage characteristics, note this in the case submission so that the design can be adjusted accordingly.

How many uses can I get from a single Curedent Custom Tray?

The Curedent Custom Tray is designed for single-use precision impression taking. In some clinical scenarios, the tray may be used for multiple impressions if properly cleaned and sterilized between uses, but this depends on the material and the clinical application. For maximum accuracy, single-use is recommended.

Can I order a custom tray for implant cases?

Yes. The Curedent Custom Tray can be designed for a range of implant impression cases, including closed-tray impression techniques. For open-tray pick-up impressions requiring windowed access for guide pin management, use the dedicated Curedent Implant Impression Tray.

What scan file format does Curedent accept?

The Curedent portal accepts open-format STL and PLY surface scan files from all major intraoral scanner systems, including iTero, 3Shape TRIOS, Medit, Carestream, and Dentsply Sirona. Diagnostic cast scans in the same formats are also accepted.

Is the tray autoclavable?

Yes. The Class IIa biocompatible printable resin used for Curedent Custom Trays is compatible with standard autoclave sterilization cycles. Follow the autoclave manufacturer’s recommended cycle parameters, and allow the tray to cool completely before use.
